Workflow Metrics

An open-source dashboard for GitHub Actions metrics with AI-powered optimization suggestions.

Features

• GitHub OAuth login — Sign in with GitHub using repo and read:org scopes to access your workflows

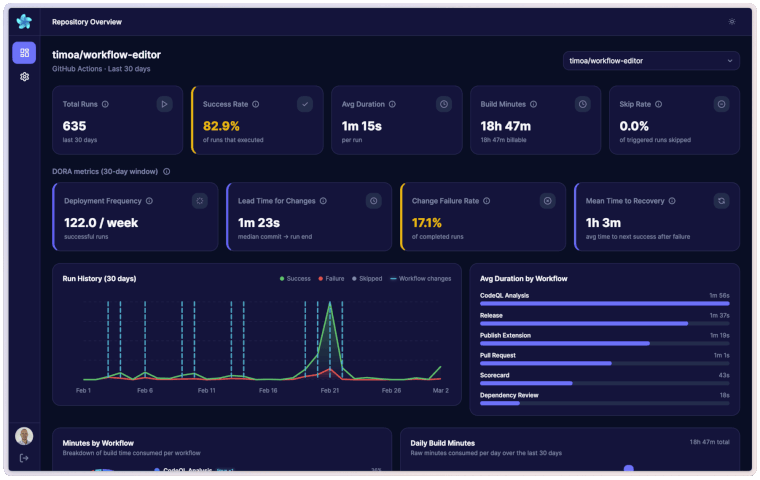

• Repository overview dashboard — Total runs, success rate, average duration, active workflows, and 7→30 day progressive loading
• DORA metrics — Deployment Frequency, Lead Time for Changes, Change Failure Rate, and Mean Time to Recovery over the last 30 days
• Run history + workflow-change markers — Visual breakdown of success/failure/cancelled runs plus commit markers when workflow files changed
• Duration by workflow — Bar chart comparing average duration across all workflows
• Build minutes + billable minutes — Raw build minutes with billable estimate using GitHub-hosted runner multipliers (Linux ×1, Windows ×2, macOS ×10)
• Minutes analytics — Minutes by workflow, daily build-minutes trend, per-workflow minutes by job, and daily workflow minutes trend
• Efficiency insights — Wasted minutes on failures, most expensive workflow, costliest branch, and frequency × duration table
• Skip analytics — Global skip rate, per-workflow skip rate, and top skipped workflows table
• Recent runs table — Filterable list of the latest runs with status, branch, actor, and duration
• Workflow list — All workflows with live success rate and quick navigation
• Workflow detail dashboard — Deep dive into a single workflow: P50/P95 duration, build minutes, billable minutes, skip rate, and cost efficiency
• Workflow structure flow chart — Interactive workflow graph (trigger + job dependency DAG) with runner labels and step counts
• Job + step breakdowns — Per-job timing analysis (avg/min/max) and slowest-job step-level breakdown from recent completed runs
• AI optimization with Mistral — Click "Optimize with AI" on any workflow to get streaming, actionable suggestions (caching, parallelization, runner optimization, cost, etc.)
• Apply as PR — Push AI optimization suggestions directly as a pull request via the GitHub App integration
• Settings page — Manage GitHub connections, tracked repositories, Mistral API key, and theme
• Dark / light mode — Dark by default, persisted per user preference

Workflow Flow Chart

Workflow detail pages include an interactive flow chart that visualizes trigger-to-job execution order and needs dependencies.

flowchart LR
    T([Trigger])
    L[lint]
    U[unit-tests]
    B[build]
    D[deploy]

    T --> L
    T --> U
    L --> B
    U --> B
    B --> D

Loading

Tech Stack

• Framework: Svelte 5 + SvelteKit 2
• Styling: TailwindCSS 4 + @tailwindcss/vite
• Auth & Database: Supabase (GitHub OAuth + PostgreSQL)
• GitHub API: @octokit/rest
• AI: Vercel AI SDK + @ai-sdk/mistral (streaming)
• Deployment: Cloudflare Pages via @sveltejs/adapter-cloudflare
• Package manager: PNPM

Design

The UI design and color system are inspired by the free template "Dark Admin Dashboard" by Malik Ali.
Figma template: Dark Admin Dashboards.

Getting Started

Prerequisites

• Node.js >= 24
• PNPM >= 10

1. Clone and install

git clone https://github.com/timoa/workflow-metrics.git
cd workflow-metrics
pnpm install

2. Create a Supabase project

1. Create a new project at supabase.com.
2. Run database migrations (choose one method):
   • With Supabase CLI:

     supabase link --project-ref YOUR_PROJECT_REF
     supabase db push

     Your project ref is in the Supabase dashboard URL: https://supabase.com/dashboard/project/YOUR_PROJECT_REF.
   • Without CLI: In Supabase Dashboard → SQL Editor, run each file in supabase/migrations/ in numerical order, from 001_initial.sql through 008_github_app_installations_avatar_name.sql.
3. Enable GitHub OAuth (use a GitHub OAuth App, not a GitHub App):
   • Go to GitHub → Settings → Developer settings → OAuth Apps → New OAuth App.
   • Set Authorization callback URL to your Supabase callback: https://<your-project-ref>.supabase.co/auth/v1/callback.
   • Copy the Client ID and Client secret, then in Supabase → Authentication → Providers → GitHub, paste them and enable GitHub.
   • In Supabase → Authentication → URL Configuration → Redirect URLs, add:

     http://localhost:5173/auth/callback
     https://your-project.pages.dev/auth/callback


4. From Supabase → Project Settings → API, copy:
   • Project URL → PUBLIC_SUPABASE_URL
   • anon / public key → PUBLIC_SUPABASE_ANON_KEY
   • service_role key → SUPABASE_SERVICE_ROLE_KEY (server-only; bypasses RLS for cache writes — never expose this key to the browser or commit it to source control)

3. Create a GitHub App (for "Apply as PR")

The "Apply as PR" feature — which pushes AI optimization suggestions directly as a pull request — requires a GitHub App (separate from the OAuth App used for login).

1. Go to GitHub → Settings → Developer settings → GitHub Apps → New GitHub App.
2. Fill in the details:
   • GitHub App name: e.g. workflow-metrics-bot
   • Homepage URL: your app URL (e.g. https://your-project.pages.dev)
   • Callback URL: https://your-project.pages.dev/auth/github-app/callback
     • For local dev, also add: http://localhost:5173/auth/github-app/callback
   • Webhook: uncheck Active (not needed)
3. Under Repository permissions, set:
   • Contents: Read & Write
   • Pull requests: Read & Write
   • Workflows: Read & Write
   • Actions: Read
4. Click Create GitHub App.
5. On the App settings page, note the App ID → GITHUB_APP_ID.
6. Note the App slug from the URL (github.com/apps/<slug>) → GITHUB_APP_SLUG.
7. Scroll to Private keys → Generate a private key. A .pem file will download.
   • Collapse the newlines for use as a single-line secret:

     awk 'NF {sub(/\r/, ""); printf "%s\\n",$0;}' your-app.pem

   • Use the output as GITHUB_APP_PRIVATE_KEY.

4. Get a Mistral AI API key (for AI optimization)

The "Optimize with AI" feature streams actionable suggestions (caching, parallelization, runner optimization, cost reduction) powered by Mistral AI. The key is per-user and entered in the app Settings page — it is not a server environment variable.

1. Sign up or log in at console.mistral.ai.
2. Go to API Keys → Create new key.
3. Copy the key — you will not be able to see it again.
4. After logging into the app, go to Settings and paste the key into the Mistral API key field.

The key is stored encrypted in Supabase and is only used server-side. AI optimization is simply unavailable without one — the rest of the app works normally.

5. Configure environment variables

Copy .env.example to .env:

cp .env.example .env

Fill in the values:

# ── Supabase ──────────────────────────────────────────────────────────────────
PUBLIC_SUPABASE_URL=https://your-project.supabase.co
PUBLIC_SUPABASE_ANON_KEY=your-anon-key
SUPABASE_SERVICE_ROLE_KEY=your-service-role-key

# ── App URL (production only) ─────────────────────────────────────────────────
# Required in production so OAuth redirects back to the correct URL.
# Leave commented out for local dev — the app uses the request origin automatically.
# PUBLIC_APP_URL=https://your-project.pages.dev

# ── GitHub App (for "Apply as PR") ───────────────────────────────────────────
GITHUB_APP_ID=your-numeric-app-id
GITHUB_APP_PRIVATE_KEY="-----BEGIN RSA PRIVATE KEY-----\n...\n-----END RSA PRIVATE KEY-----"
GITHUB_APP_SLUG=your-github-app-slug

Variable	Required	Description
PUBLIC_SUPABASE_URL	Yes	Supabase project URL
PUBLIC_SUPABASE_ANON_KEY	Yes	Supabase anon (public) key
SUPABASE_SERVICE_ROLE_KEY	Yes	Supabase service role key — bypasses RLS for server-side cache writes. Never expose this to the browser or commit it to source control
PUBLIC_APP_URL	Production only	Your deployed app URL (e.g. https://your-project.pages.dev), no trailing slash
GITHUB_APP_ID	Yes	Numeric App ID from GitHub App settings
GITHUB_APP_PRIVATE_KEY	Yes	RSA private key from GitHub App settings (full PEM, newlines as \n)
GITHUB_APP_SLUG	Yes	URL slug of your GitHub App (e.g. workflow-metrics-bot)

6. Run locally

pnpm dev

Open http://localhost:5173.

Deployment (Cloudflare Pages)

1. Connect to Cloudflare Pages

Connect your GitHub repository to Cloudflare Pages with these build settings:

• Build command: pnpm run build
• Build output directory: .svelte-kit/cloudflare
• Node.js version: 24

2. Set environment variables

In Cloudflare Pages → Settings → Environment Variables, add all variables from the table above, including PUBLIC_APP_URL set to your production URL.

Variable	Description
PUBLIC_SUPABASE_URL	Supabase project URL
PUBLIC_SUPABASE_ANON_KEY	Supabase anon (public) key
SUPABASE_SERVICE_ROLE_KEY	Supabase service role key
PUBLIC_APP_URL	Your production app URL (e.g. https://your-project.pages.dev)
GITHUB_APP_ID	GitHub App ID
GITHUB_APP_PRIVATE_KEY	GitHub App RSA private key (full PEM, newlines as \n)
GITHUB_APP_SLUG	GitHub App URL slug

3. Update Supabase OAuth redirect URLs

In Supabase → Authentication → URL Configuration → Redirect URLs, ensure all URLs are listed:

http://localhost:5173/auth/callback
https://your-project.pages.dev/auth/callback
https://your-custom-domain.com/auth/callback   ← if using a custom domain

Database Schema

See supabase/migrations/001_initial.sql for the full schema with RLS policies.

Tables:

• github_connections — GitHub OAuth tokens per user
• repositories — Tracked repositories per user
• user_settings — Mistral API key (encrypted), theme, default repo
• workflow_runs_cache — Cached workflow run data to reduce GitHub API calls
• workflow_detail_runs_cache — Cached per-workflow run details
• optimization_history — History of AI optimization suggestions per workflow
• github_app_installations — GitHub App installation records per repository

Related Projects

Workflow Editor — A VSCode extension that lets you edit GitHub Actions workflow files visually: jobs and dependencies as an interactive diagram, trigger configuration, matrix strategy, and step editing — all without touching YAML directly. A great companion to Workflow Metrics when you want to act on the insights and improve your workflows.

Contributing

Contributions welcome! See CONTRIBUTING.md for setup, coding standards, and the PR process.

License

MIT
